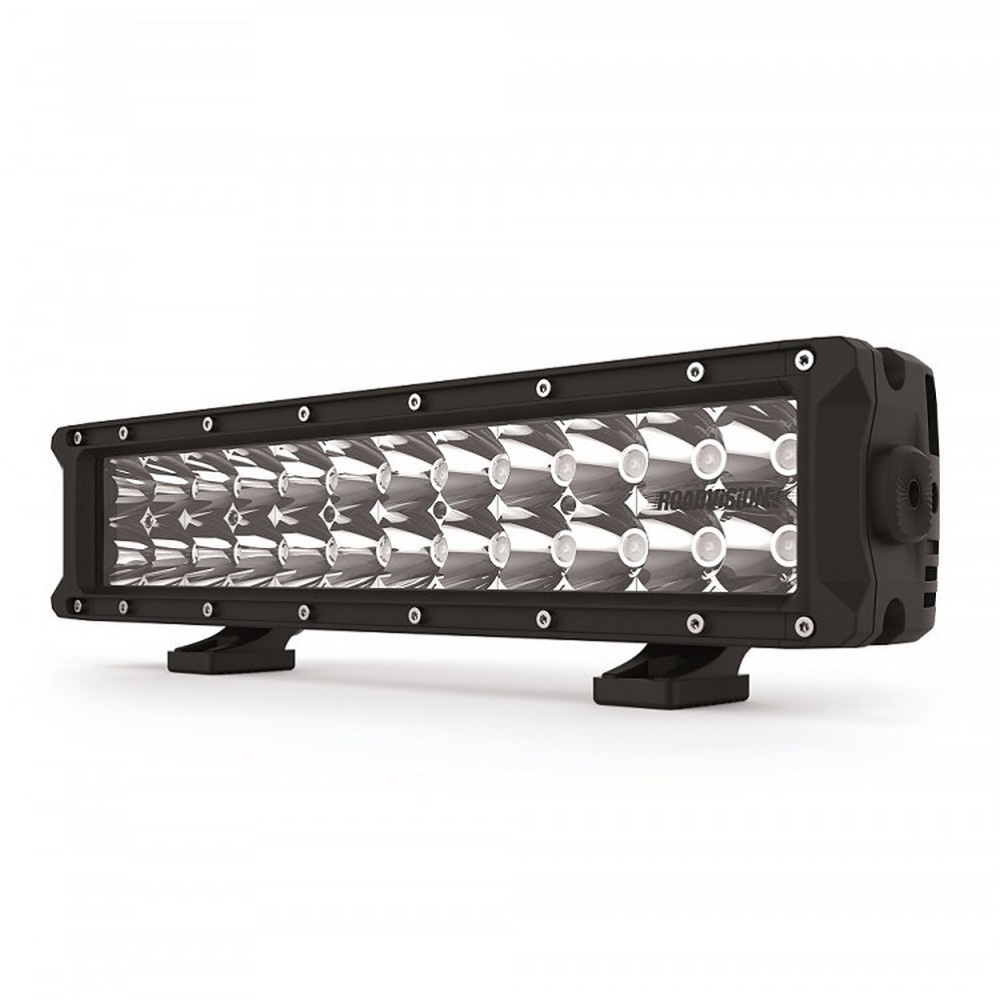

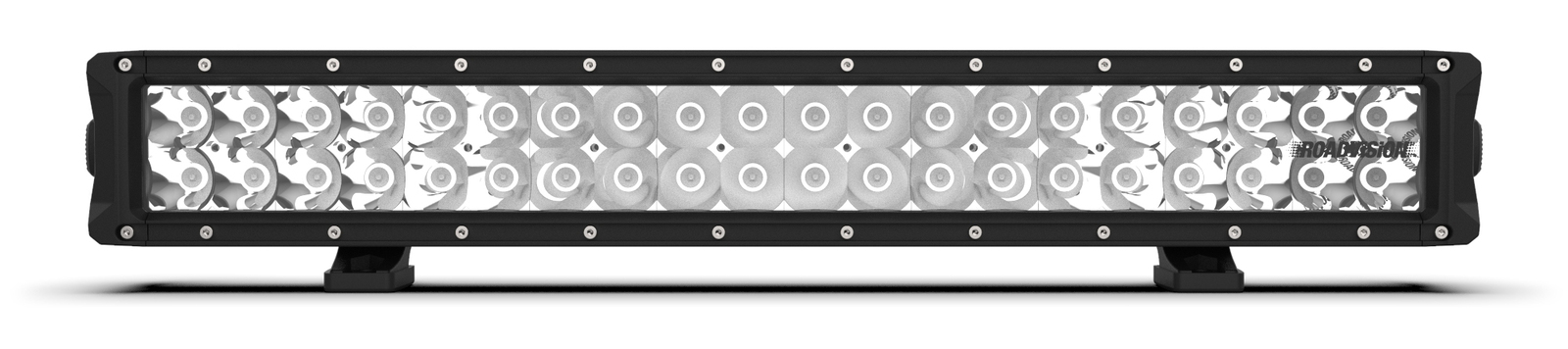

Roadvision 22-Inch DRW Series LED Bar Light Combo Beam 10-30V 40 x 1.5W Osram LED 60W 5400lm IP67 Slide & End Mounts Roadvision White Label

The Roadvision DRW Series LED bar lights are the ideal choice as an entry level light bar. Utilising the latest high performing 1.5W Osram Hi-Lux LED’s packaged in an IP67 rated housing and shielded behind a polycarbonate lens, the DRW Series dual row LED bar lamps produce up to 5400lm of instant light output. Matched with spot and driving optics, they produce combination style beam patterns reaching up to 495 metres. Available in the most common 14” & 22” lengths, they are perfect as a high performing entry level solution.


- Super Low current Draw Yes
- Over/Under Voltage Approved Yes
- Lumens Light Output 5400lm
- Housing Tough Die-cast Aluminium
- Wiring 2 Pin Deutsch Plug
- Warranty 5 Years
- Total Watts 60W
- Light Source 40x1.5W Osram Hi-Lux LED’s
- Beam Distance 495m
- Mounting Side and End Mounts
- Lens Polycarbonate
- Dimensions 563 x 65 x 78.5mm
- Brand Roadvision
- LED Lifespan 50,000 Hours
- IP Rating IP67 Water & Dust Proof
- Series DRW
- Current Draw Amps 4.75A @ 13.8V
- Beam type Combination Beam
- Bar Length 22”
Brand Roadvision


- DRW Series dual row LED bar lamps produce up to 5400lm of instant light output
- Available in 14” & 22” models
- 1.5W Osram Hi-Lux LED’s produce super white light close to daylight
- Multi-volt 10-30V DC input
- Super low current draw
- 50,000 hour LED lifespan with solid state technology
- Light weight tough die-cast aluminium housing & polycarbonate lens
- Water & dust proof IP67 rated
- Simple 2 wire installation with Deutsch plug
- Supplied with slide & end mounts
- Over/under voltage, reverse polarity protection & EMI/EMC radio interference approved
