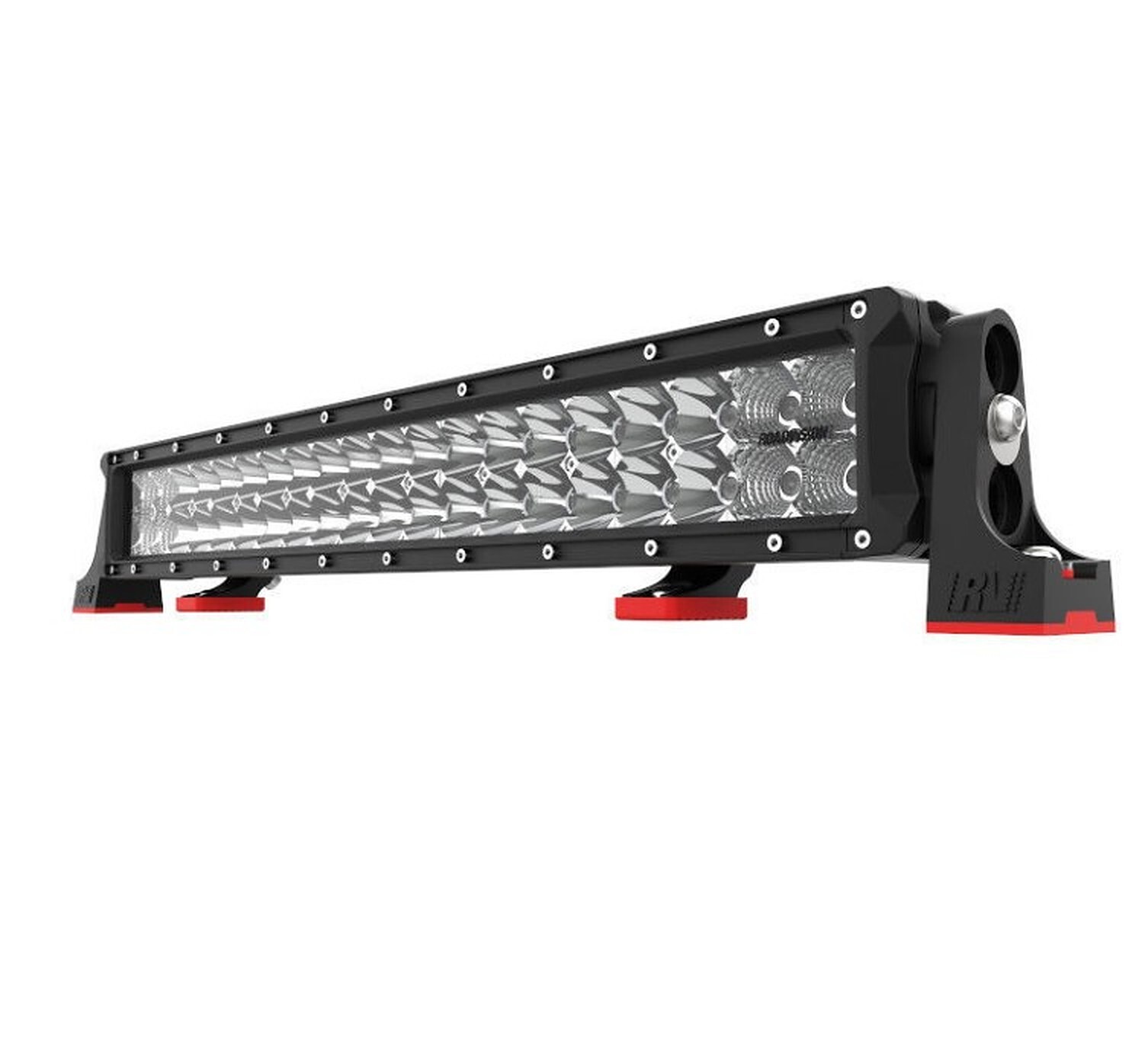

Roadvision 22-Inch DC2 Series LED Bar Light Combo Beam
The Roadvision DC2 Series are the next generation in dual row LED light bars. Producing up to a massive 25920lm of light output, the DC2 Series deliver brute power and intense light output with a perfect match of advanced optical design and 3W Osram Hi-Lux LEDs.

Featuring the latest soft start, PWM dimming and advanced thermal management technology from Roadvision, the DC2 Series is available in combination beam patterns from 8” to 50” providing a perfect mix of forward penetration and roadside illumination. Supplied with both low profile adjustable slide mounts and Roadvision’s new 9 position adjustable anti-vibration mounting system, the DC2 Series also features a new ultra slim 65mm deep housing providing greater mounting flexibility. The DC2 Series by Roadvision, brute power from the biggest bars in our line-up.


- LUMENS 10800lm
- Light Source 40 x 3w Osram LED's

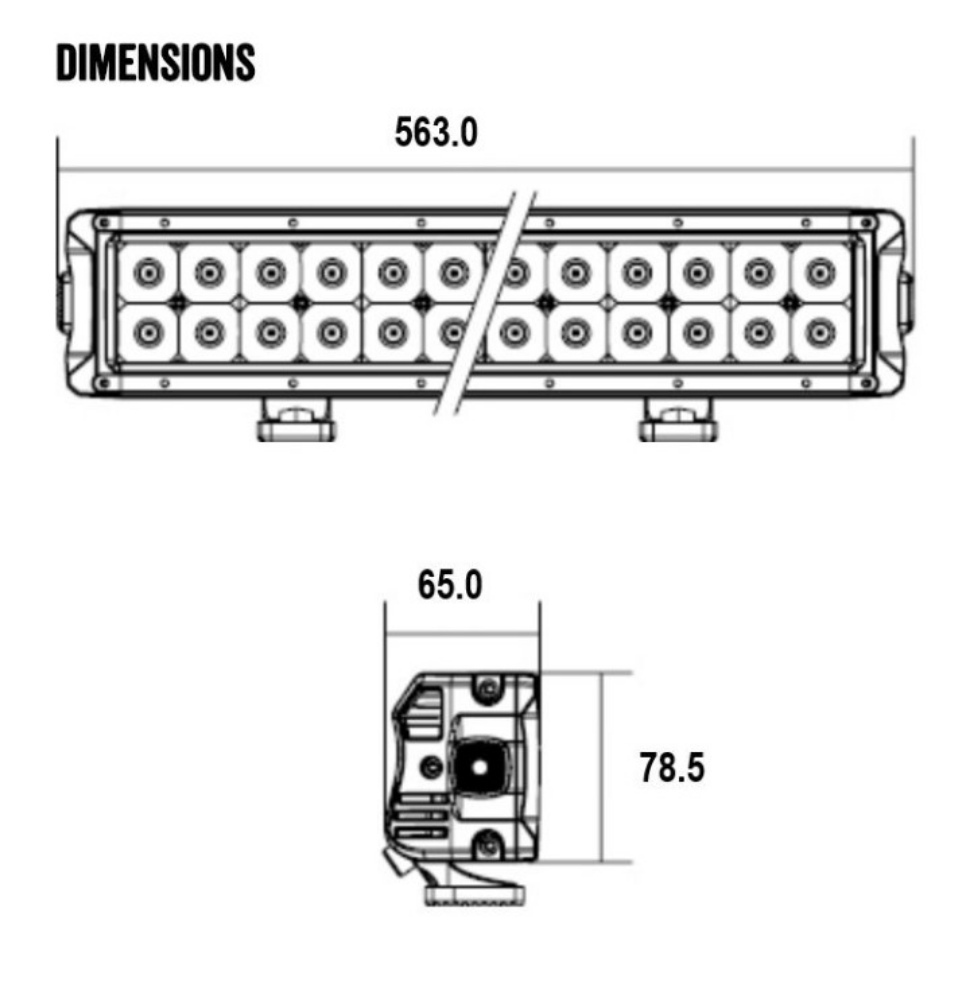

- Dimensions 563 x 65 x 78.5mm
- Current Draw 6.7A @ 13.8V
- Wiring 2 Pin Deutsch Plug
- Voltage 10-30v
- Wattage 120W
- Bar Length 22"
- Optional features Dimmable function
- Adjustable Mounting Anti vibration - 9 height settings
Brand Roadvision


- DC2 Series dual row LED bar lamps produce up to 25920lm of instant light output
- Available in 8” to 50” models
- 3W Osram Hi-Lux LED’s produce super white light close to daylight
- Multi-volt 10-30V DC input & super low current draw
- 50,000 hour LED lifespan with solid state technology
- Soft start, PWM dimmable & advanced thermal management technology
- Light weight tough die-cast aluminium housing & polycarbonate lens
- Water & dust proof IP67 rated
- Simple 2 wire installation with Deutsch/ATP plug & optional plug & play dimming
- Nine (9) position adjustable anti-vibration end mount system & low profile slide mounts
- Over/under voltage, reverse polarity protection & EMI/EMC radio interference approved
- Warranty 7 years
