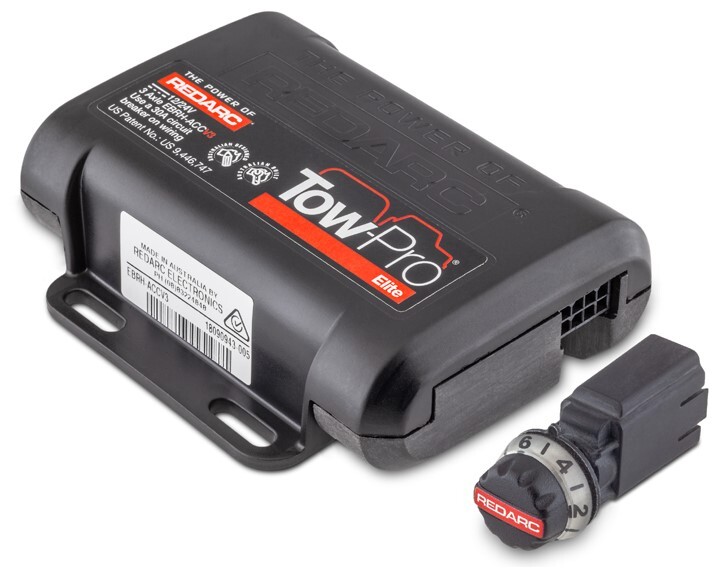

The REDARC Tow-Pro Elite V3 Electric Trailer Brake Controller is the next generation of the award-winning Tow-Pro Elite range.

Redarc is releasing the next generation of its award-winning Tow-Pro Elite electronic brake controller. Like the previous generation, the new Tow-Pro Elite provides users with the ability to swap between an Automatic mode (inertia sensing) for highway driving conditions and User-Controlled mode for off-road driving. The new Tow-Pro Elite also still features Active Calibration, works with Electric & Electric/Hydraulic trailer brakes, supports 12 or 24 volt vehicle systems and ensures an ADR approved installation. Updates to the Tow-Pro Elite include a refined user interface with a new control knob & better gain level visibility along with a simpler installation process including a single drill installation, smaller remote installation depth, width & height and automotive grade connectors. The new Tow-Pro Elite is also designed to work with all available TPSI switch inserts.

• Smooth trailer braking response

• Electric or electric/hydraulic operation

• Safe braking at your fingertips

• Main unit installed out of sight

• AL-KO ESC and Dexter Sway Control System compliant


  • Input (Operating) Voltage: 9 - 32VDC
  • Input Fuse Rating: 30A (Cicruit Breaker)
  • Standby Current Draw: <10mA
  • Output System Voltage: 12VDC
  • Output Current Rating (Cont.): 25A
  • Length (mm): 85
  • Width (mm): 100
  • Height (mm): 30
  • Weight: 200g
Brand Redarc


2 Years Manufacturer Warranty
