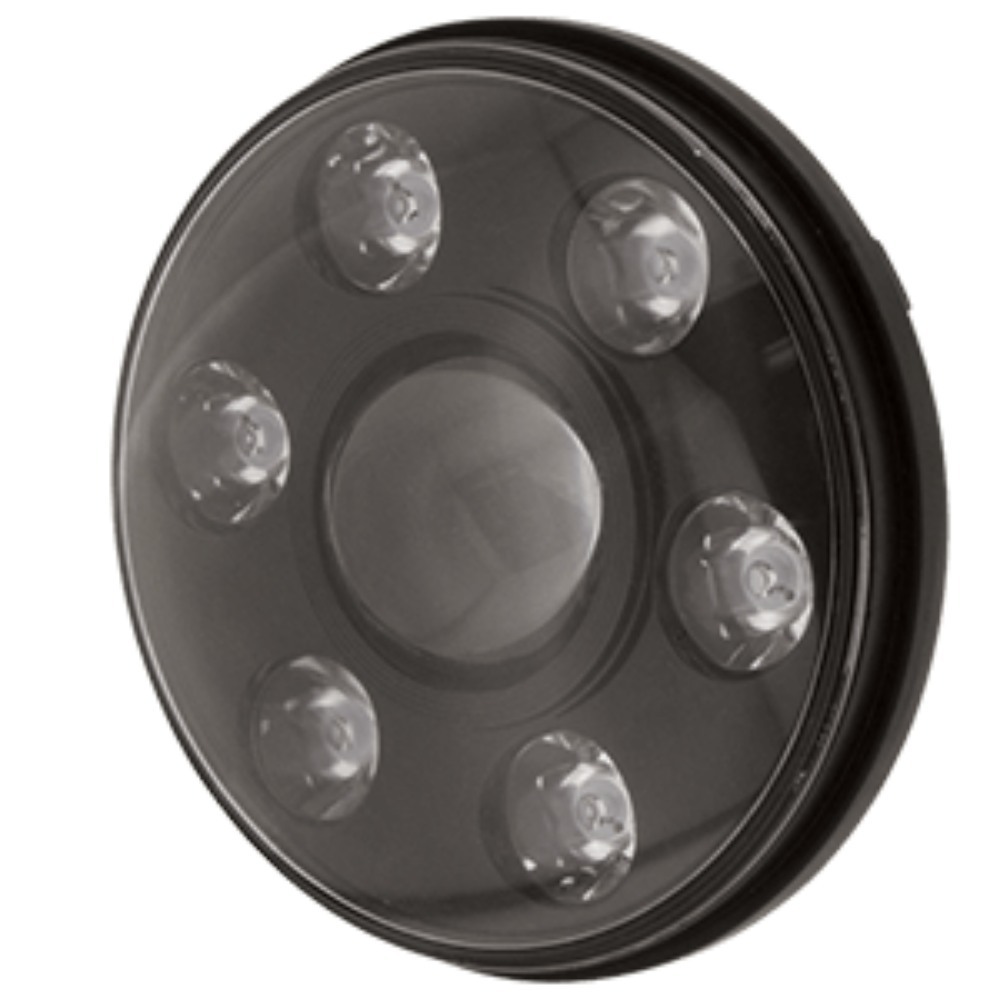

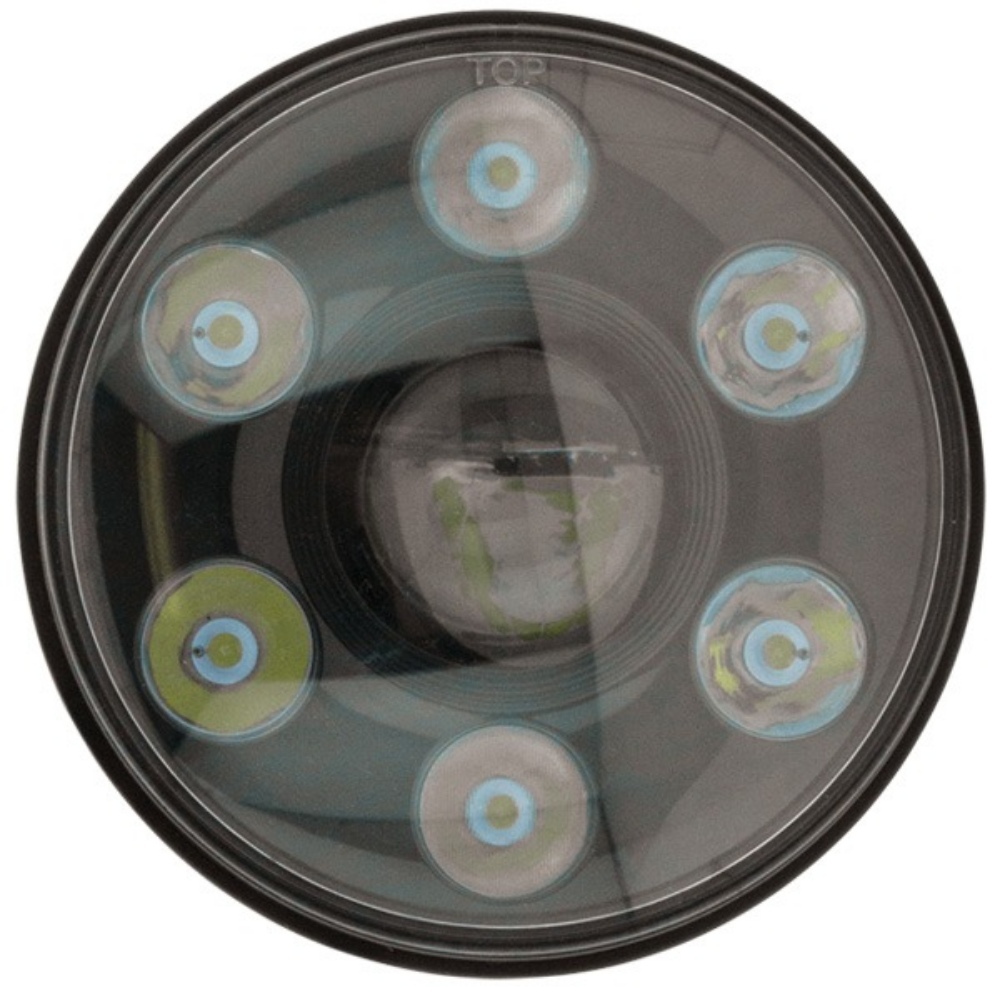

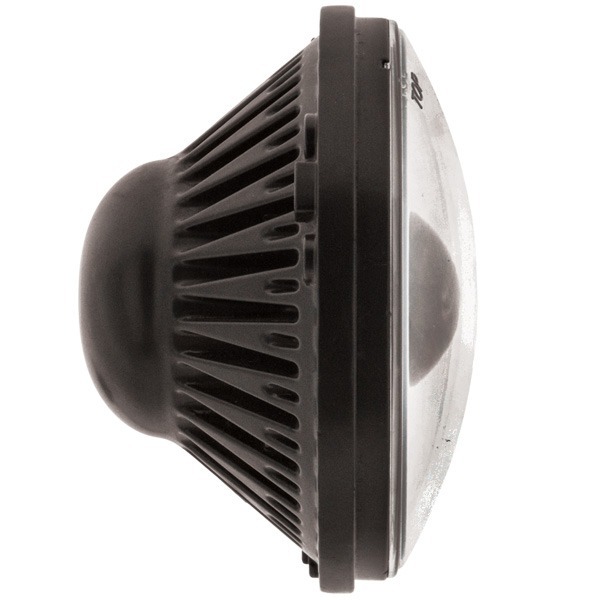

Ignite 7-Inch LED Black Headlamp Insert High/Low/Front Beam 9-36V


Ignite have just released a new 7" headlamp for replacement in a variety of automotive applications. Features both High and Low beam with a brilliant spread of light. An excellent replacement for the common PAR56 H4 and conventional sealed beams currently in the market. As with all Ignite LED lamps, these headlights have a low current draw.

Low beam is emitted from the single Philips LED in the centre with Ignite patented TIR Lens technology providing the High beam and park lamp functions via the 6 Cree LED's around the outside. H4 and H13 Globe holder connector leads are supplied with each light. IP68 rated.

Specifications:

- Voltage: 9-36V DC
- Watts: 65
- Current Draw :LB 1.7 A/0.8A @ 12/24 Volt, HB 4.1A/1.8A @ 12V/24 Volt

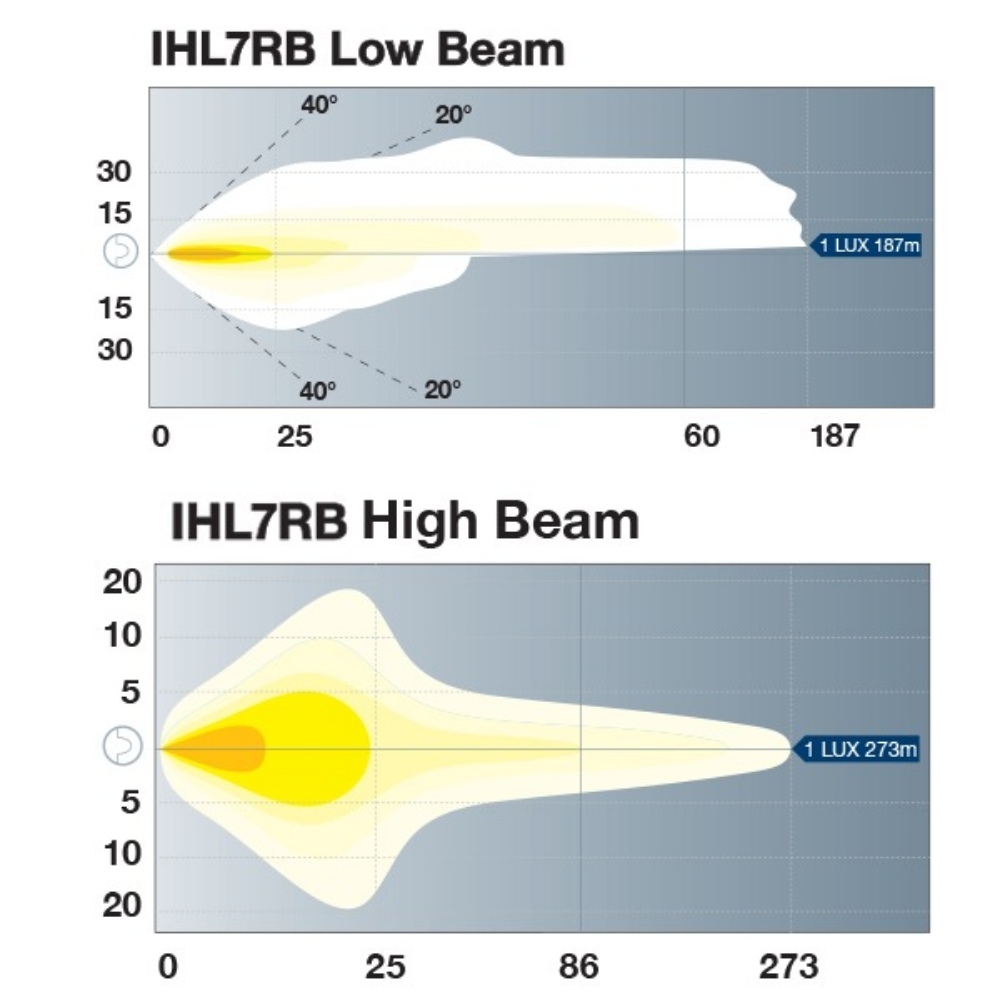

- Effective Lumens: LB 1450LM, HB 3100LM
- Raw Lumens: LB 1800LM, HB 3900LM
- Kelvin: 6,500 K
- Connector: H4/H13
- Weight: 1.4kg
- Dimensions: 177mm x 119mm
- Life Span: 50,000 hours

SKU IHL7RB
Brand Ignite

Features:

- LOW/HIGH Beam/Front position light
- Phillips LED Low Beam / CREE Led's High Beam
- Projection optical structure and TIR optical lens
- Integrated Electronic Thermal Management (ETM)
- Poly-Carbonate Lens Cover / Glass Inner Lens
- Mounting: Replaces PAR56 Headlights
- Black powder coated die cast aluminium housing
- Colour Black Fascia
- ECER112/R7, DOT, IP68, CE
