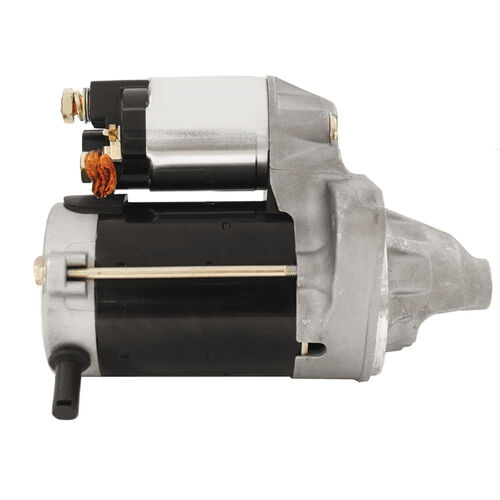

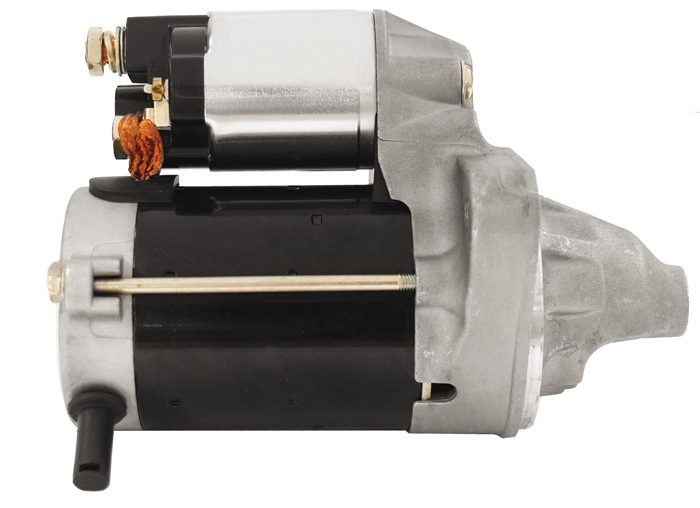

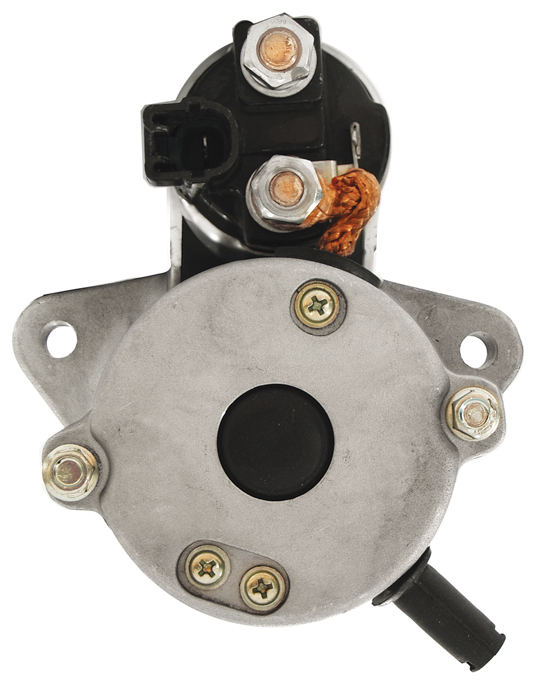

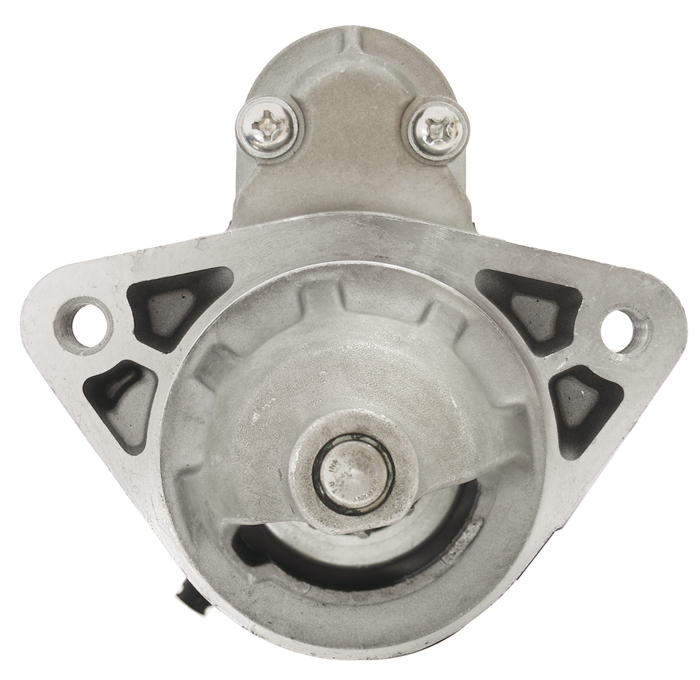

JAS Starter Motor 12V 9Th CW to Suit Toyota HiAce and HiLux

JAS Oceania has sourced the highest quality units remanufactured to OEM specifications for Starter Motors. The new specifications address the most critical components which are replaced 100% with brand new and are sourced from high end quality manufactures.  Increased and developed product range as well as offering the highest industry standard warranty periods.

  • Housings - New or Uniquely Cleaned & Blasted to OE finish
  • Solenoid - 100% New Cap & Contacts
  • Drive/ Clutch - New or Rebuilt to OE Standards
  • Bushes - 100% New
  • Comutator - Cleaned & Machined to OE Specs
  • Brushes - 100% New
  • Armature - Cleaned & Machined to OE Spec



VOLTS 12
KW 1.6
OVERALL LENGTH 180
MOUNTING HOLE DIA M10x1.25
MT HOLES CNT TO CNT 105
FLANGE DIA 74
NOSE CONE LENGTH 52
PINION AT REST 19
FIELD HSG DIA 78

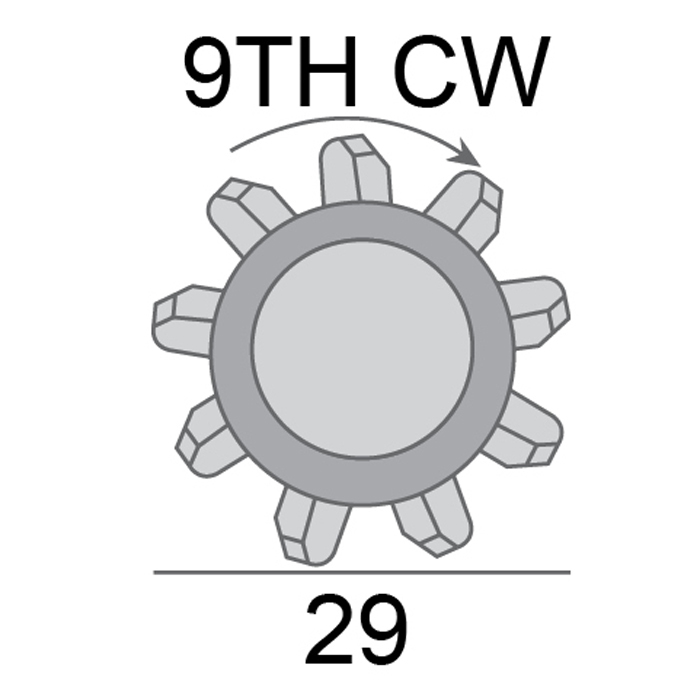

TEETH & DIA 9TH

Specifications:

SKU SNJ265
Brand JAS
